ATEX Wi-Fi

Wi-Fi Access Point
Ex-M UAP LR
Explosion proof

Technical Specifications

Dimensions
H121 x W250 x D255 mm
Weight
2.5 Kg
Mounting
Wall or ceiling mount brackets
Networking Interface
(1) 10/100/1000 Ethernet Port
Buttons
Reset
Antennas
(1) Dual-Band Antenna, Tri Polarity, 2.4GHz, 6dBi
Wi-Fi Standards
802.11 a/b/g/n/ac
Power Method
24V, 0.5A Gigabit PoE Adapter (Pairs 4, 5+; 7,8 Return)
Power Supply
6.5W
Maximum TX Power 2,4 GHz / 5 GHz
24dBm / 22dBm
Operating Temperature
-10 to 70°C (14 to 158°F)

Ideal for long-range deployments, the Ex-M UAP-LR Wi-Fi access point offers simultaneous, dual-band operation. The innovative triangular antenna design provides a long-range, symmetrical-link coverage area. The antenna gain of the Ex-M UAP-LR performs better than one-way, high transmit power does for connecting distant clients.

Ex-M UAP LR Wi-Fi Access Point and Junction Box

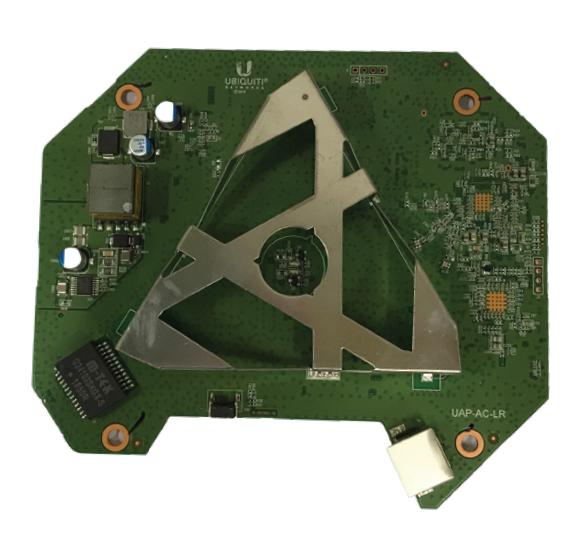

Innovative Triangular Antenna
